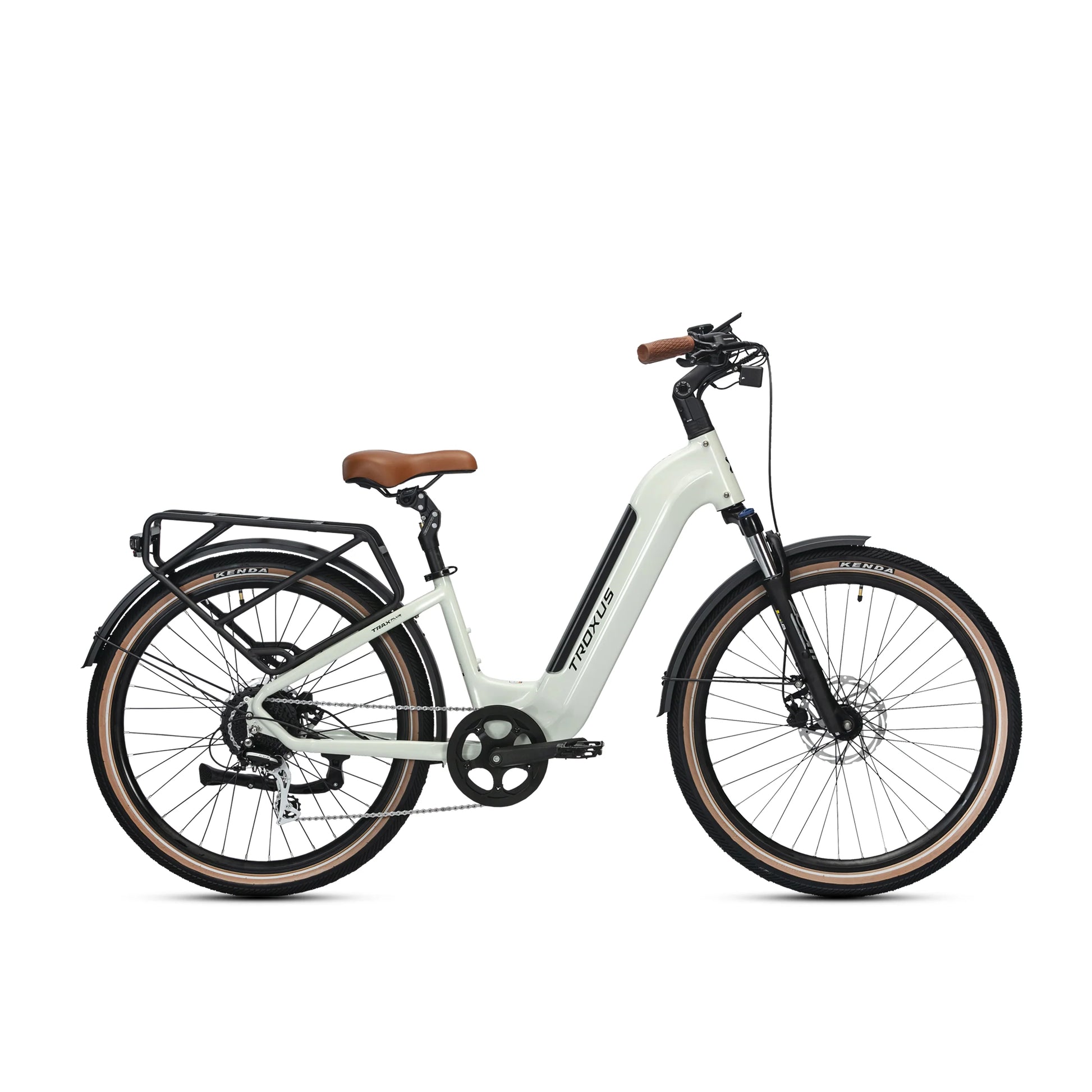

• White Troxus E-Bike

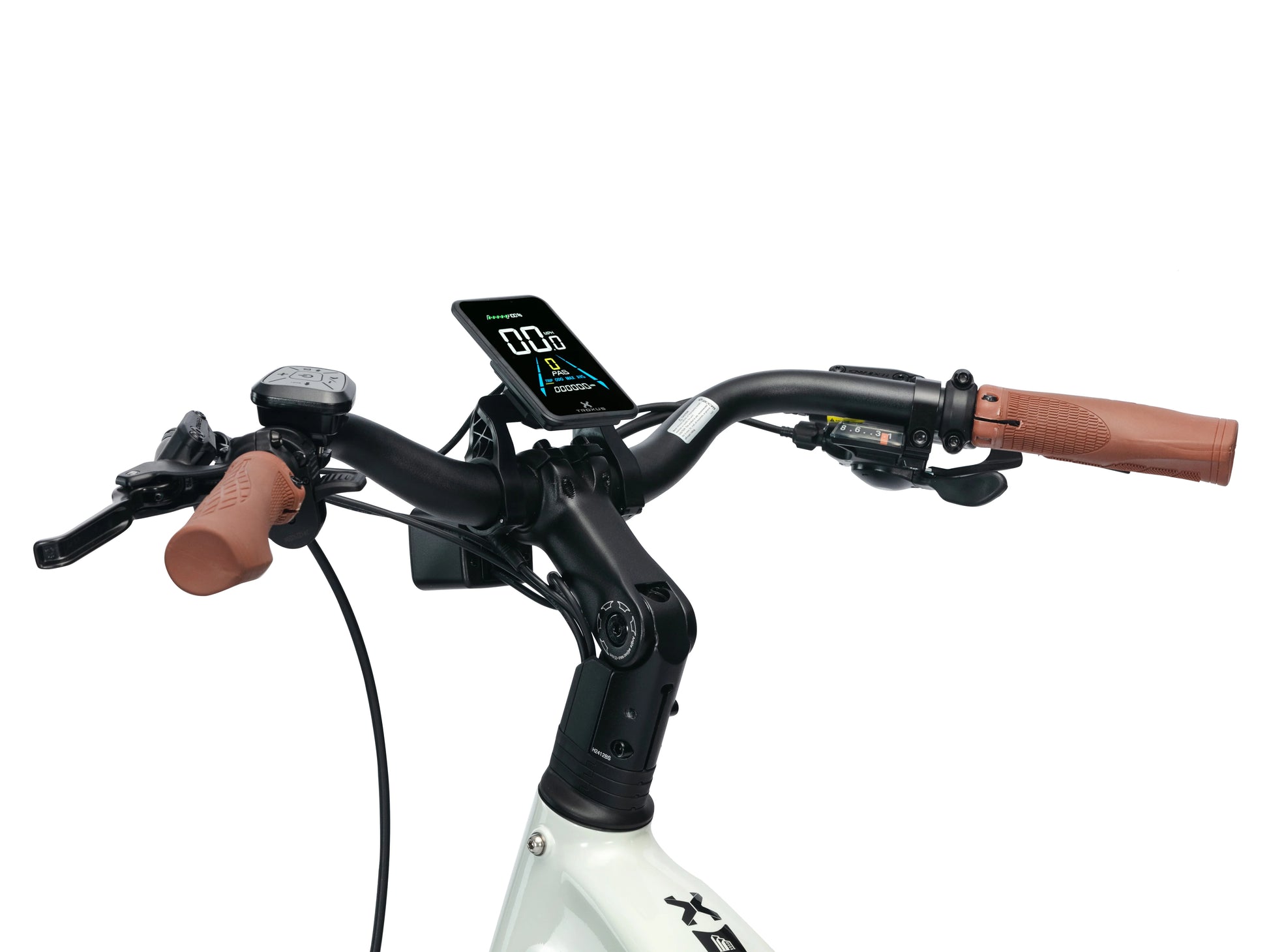

  • Handlebars and display on White Troxus E-Bike

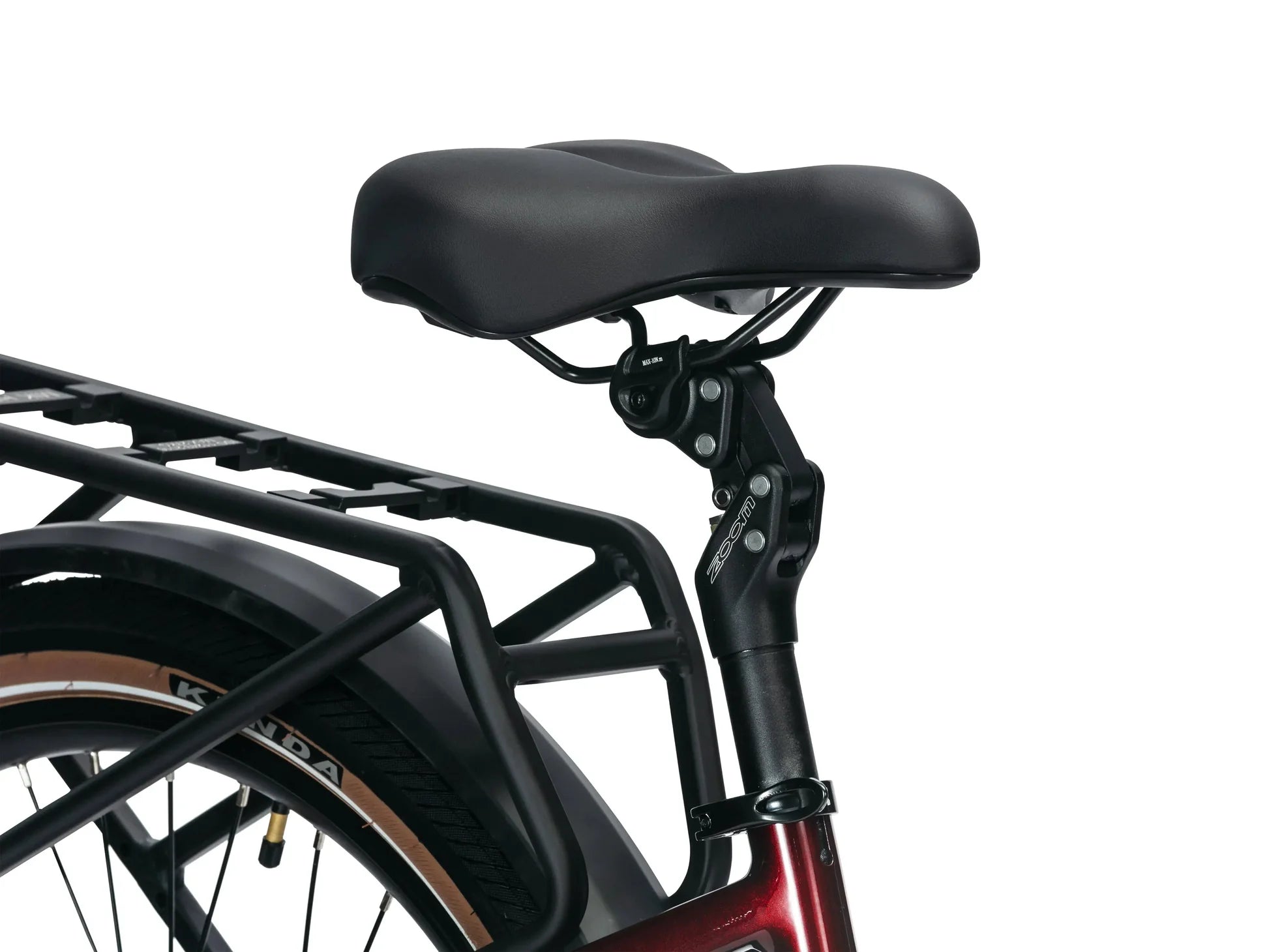

  • Suspension Seatpost on Troxus E-Bike

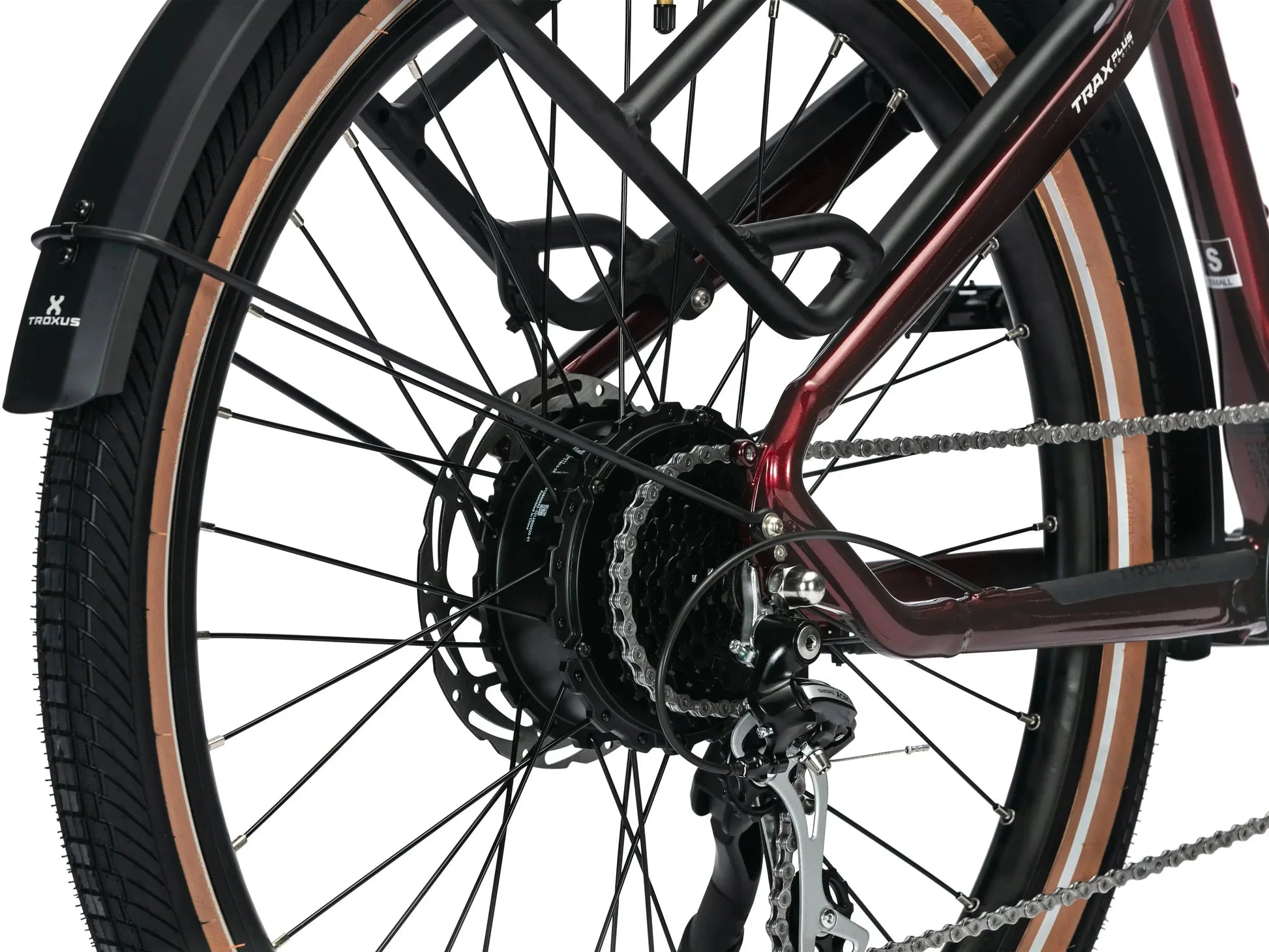

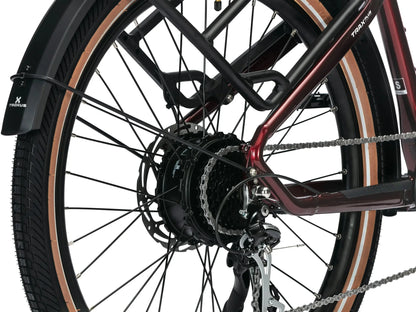

  • Rear wheel/motor on Troxus E-Bike

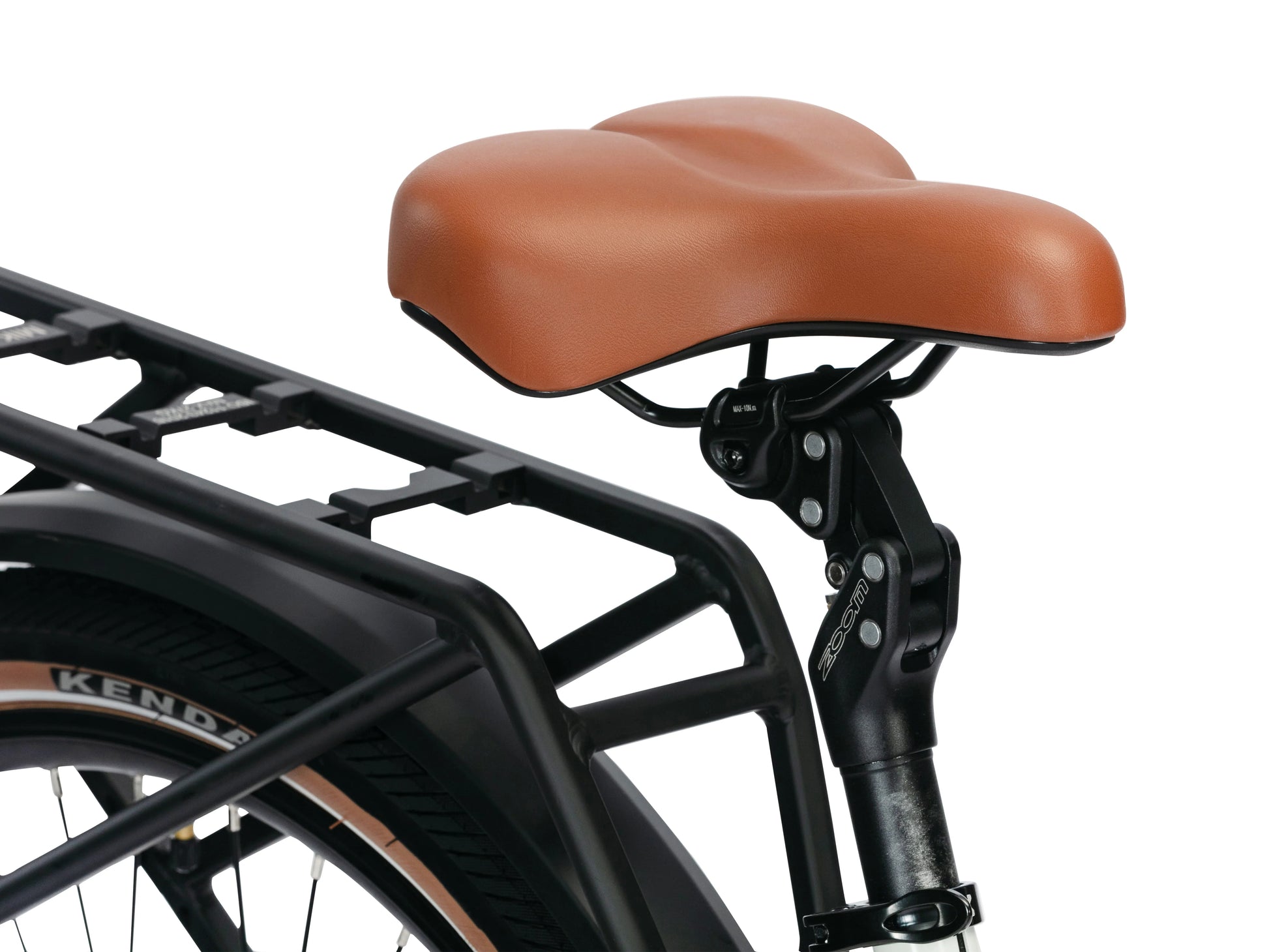

  • Suspension Seat on Troxus E-Bike

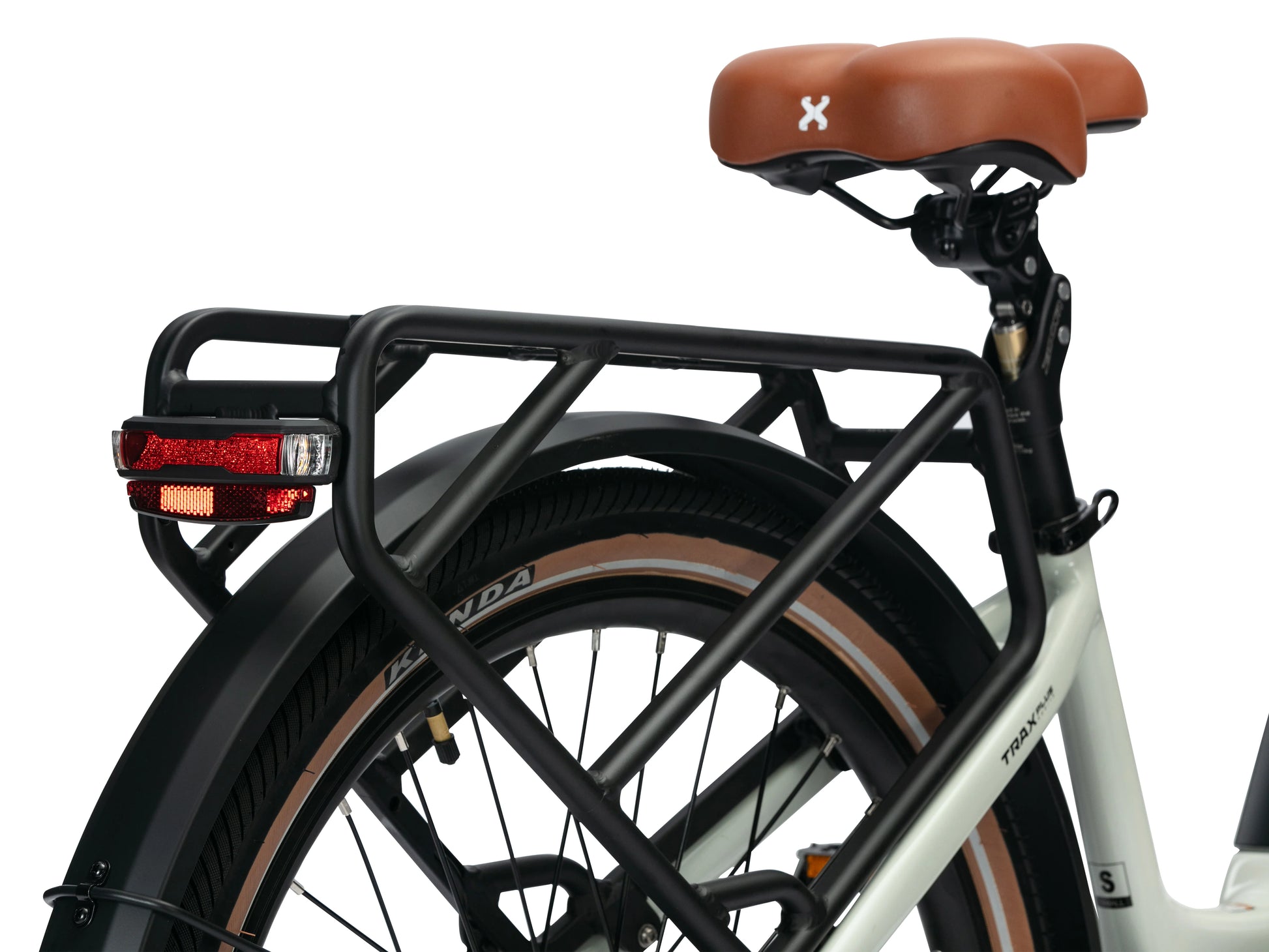

  • Rear cargo Rack on troxus E-Bike
1 6

Troxus Trax Plus Step-Thru 500/15

Troxus Trax Plus Step-Thru 500/15

$1,899.00 USD
$1,899.00 USD
Sale Sold out
Shipping calculated at checkout.

Ride in Style

The Trax Plus 500W/15Ah is your ultimate high-performance commuter e-bike, built to conquer city streets and harsh urban terrain with ease. Powered by a robust 500W motor and a long-lasting 720Wh battery, this bike delivers all the power you need for any ride. Plus, the smooth suspension seat post adds a layer of comfort you’ll love. Whether you’re climbing steep hills or cruising through the city, the Trax Plus 500W/15Ah makes every journey effortless, exciting, and fun.

Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Range Up To 70 Miles Per Charge
Weight Limit Maximum Load: 383 lbs
Net Weight 68.5 lbs



E-Systems

Motor Ananda® 48V/500W Hub-Drive Motor, 65Nm Max. Torque
Battery UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells
Display Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote
Sensor Switchable Torque And Cadence Sensor Modes
Pedal Assist 0~5 Level Pedal Assist
Charger 2A / 100-240V Input / 54.6V Output
Lights 80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
Controller 48Vx18A/12V

Components

Frame Hydroformed Aluminum Frame
Fork Zoom® Front Suspension Fork, 65mm Travel
Chain KMC® 1/2"x3/32"
Crankset Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm
Rear Derailleur Shimano® RD-M3020-8, Acera, 8-Speed
Cassette Shimano 8-Speed, 12-32T
Shifter Shimano® 8-Speed
Bottom Bracket Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Tires KENDA® 27.5"x2.2", w/ Reflective Stripes, Puncture-Resistant, E-50 Rated
Front Hub Alloy, 36H, 100mm, 3/8"Axle w/ Nuts
Rear Hub 48V 500W/ 28 MPH. 65Nm
Rims Alloy Single Wall Front / Double Wall Rear, 36H, 27.5"x2.2", w/ Eyelets
Spokes Stainless 13G. Front / 12G. Rear
Brakes Tektro® Hydraulic, w/ Brake Sensors
Rotors DDK DE-430 Comfort / 200mm Wide
Saddle DDK DE-430 Comfort / 200mm Wide
Seat Post Troxus w/ Suspension, Alloy 30.9x400mm, Adjustable
Seat Post Clamp Alloy, 35mm w/ Quick Release
Stem Zoom® Alloy, Forged, Adjustable, TDS-D634B-8/FOV, Ext. 90mm, ICR type w/ Internal Cable Routing
Handlebar Zoom® Alloy, 31.8mmx620mm, 35˚ Backsweep
Grips Ergonomic Comfort
Pedals Alloy, 9/16"axles, w/ BS reflectors
Headset Gyneyea T192KS-56, Threadless 57/56mm, W/ Internal Cable Routing
Rear Shocks N/A
Rack Alloy Rear Model/ MIK-Compatible Rear Rack
Fender Alloy, 27.5", Full coverage
Kickstand Adjustable Side Kickstand
