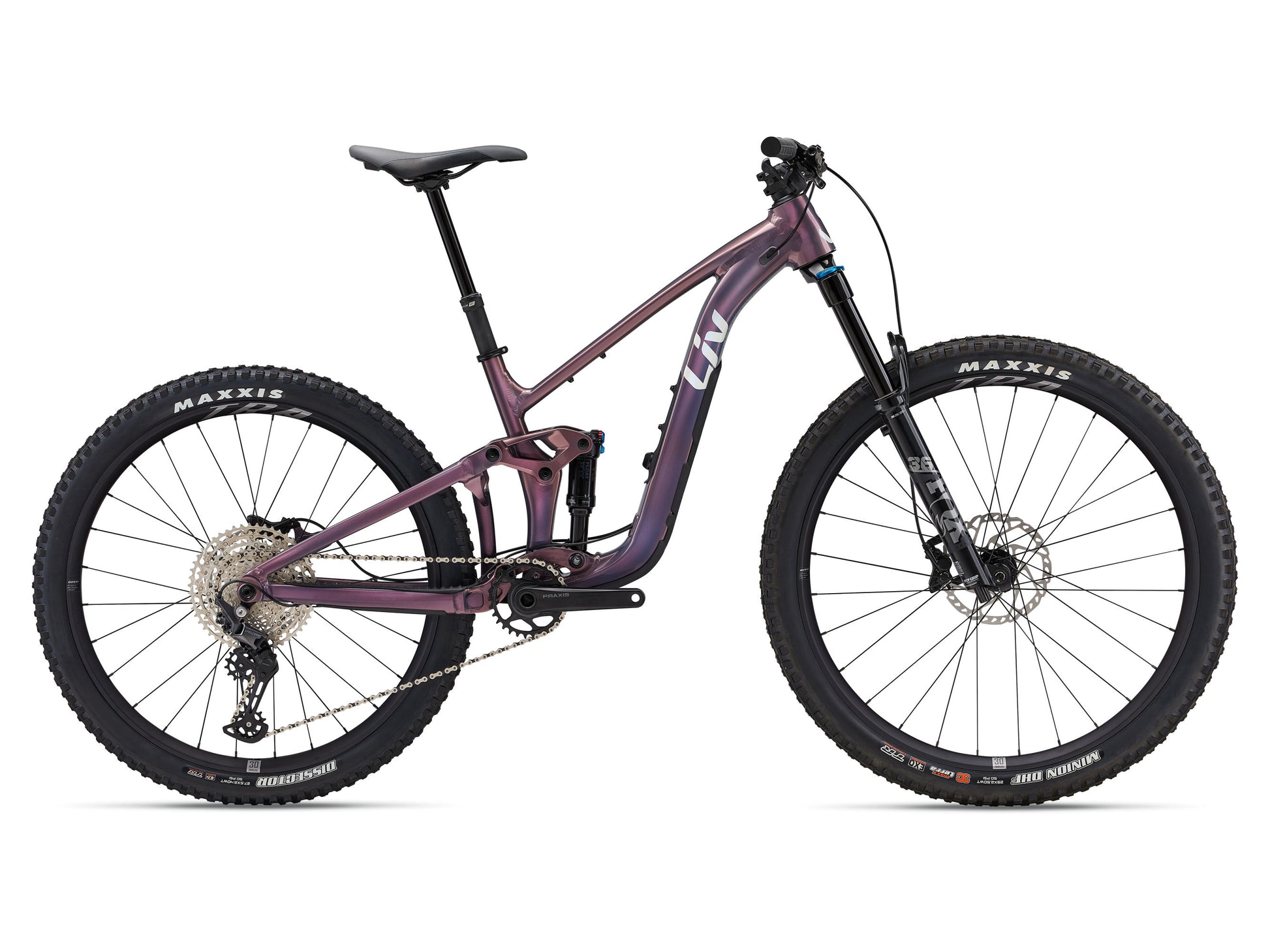

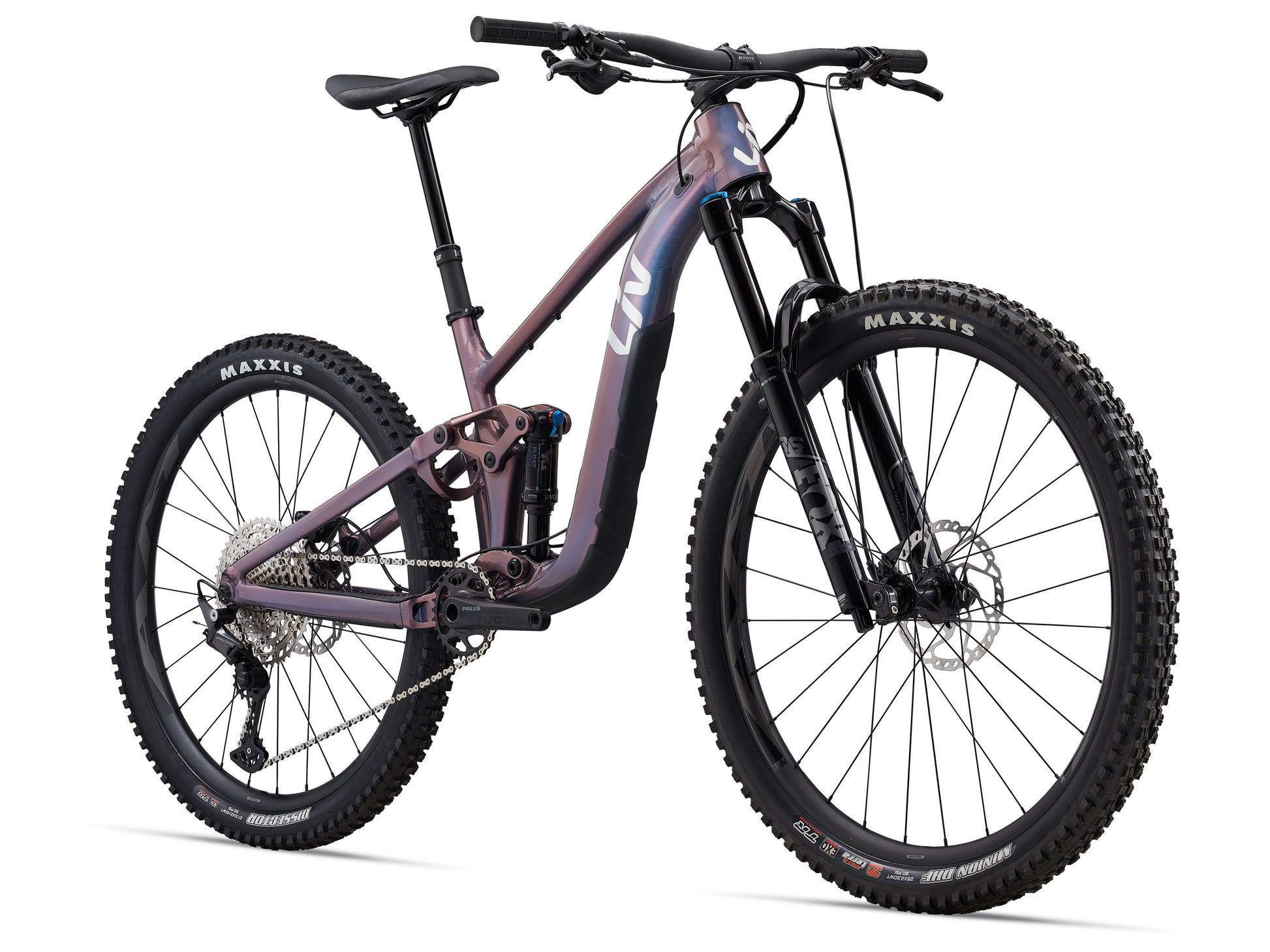

LIV Intrigue X 2
LIV Intrigue X 2
The exceptionally versatile Intrigue X was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. Extremely customizable with adjustable geometry, frame storage, and wheel options, the Intrigue X delivers extra performance and fun.
Performance Mid Travel Trail

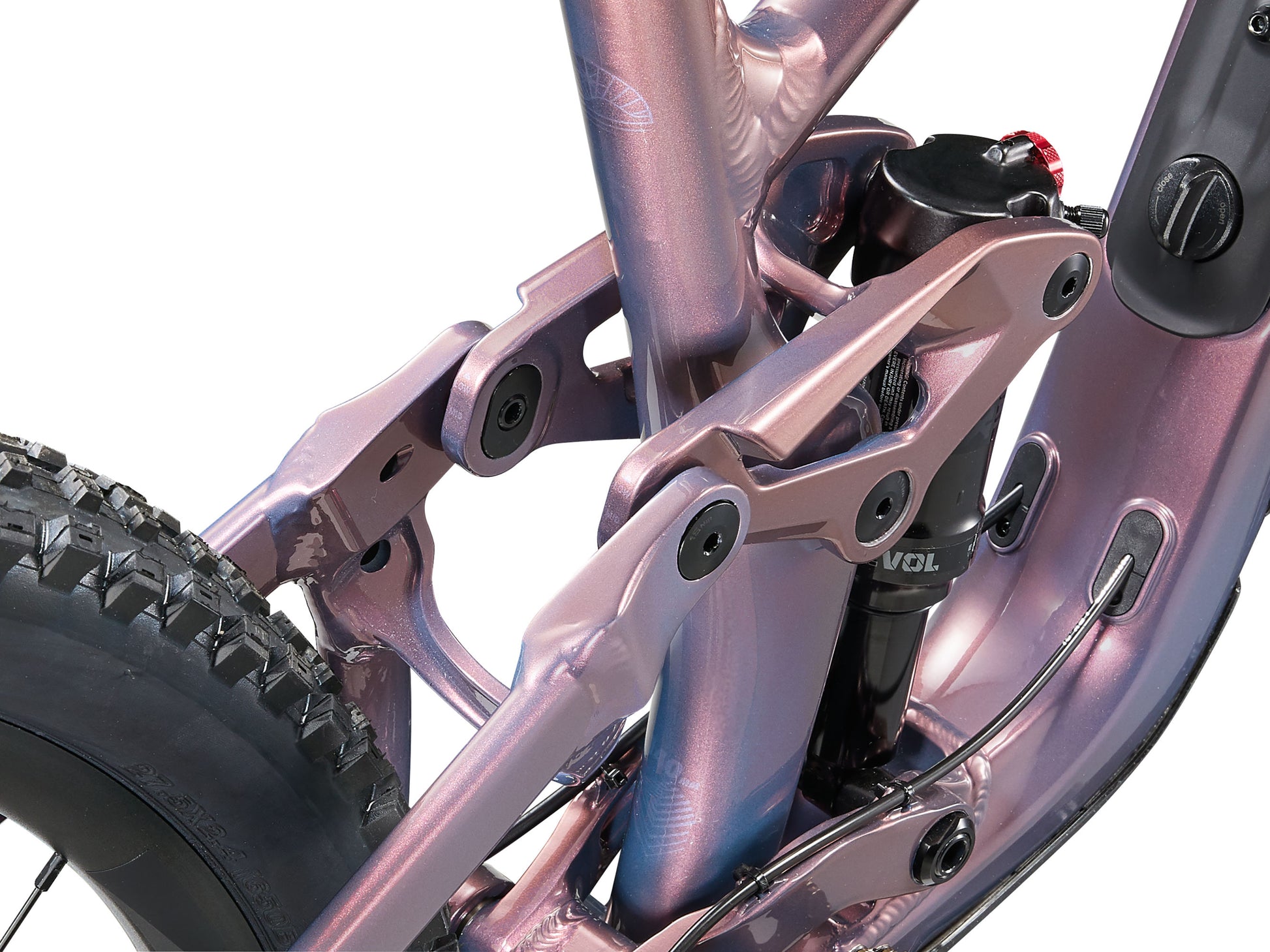

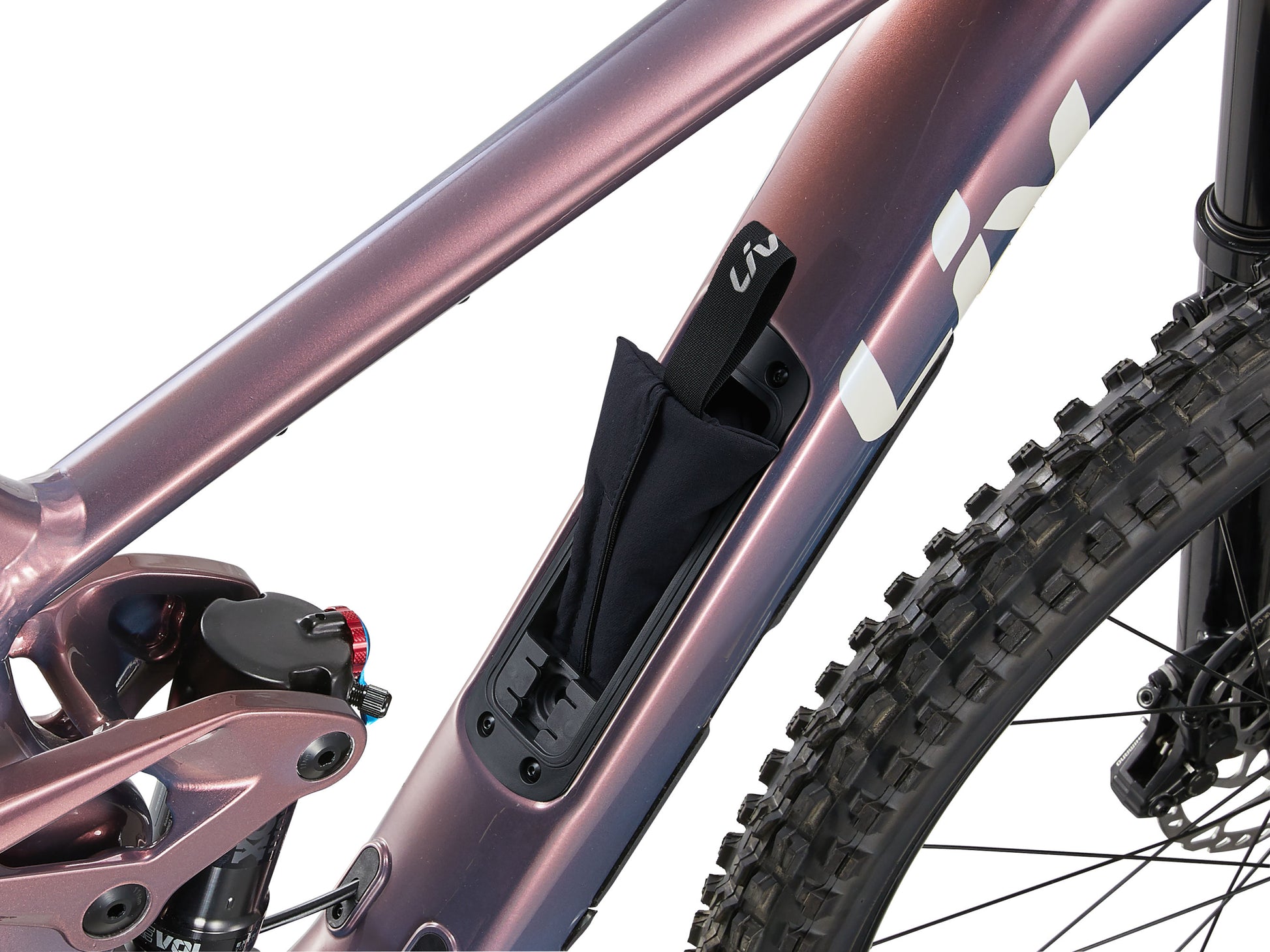

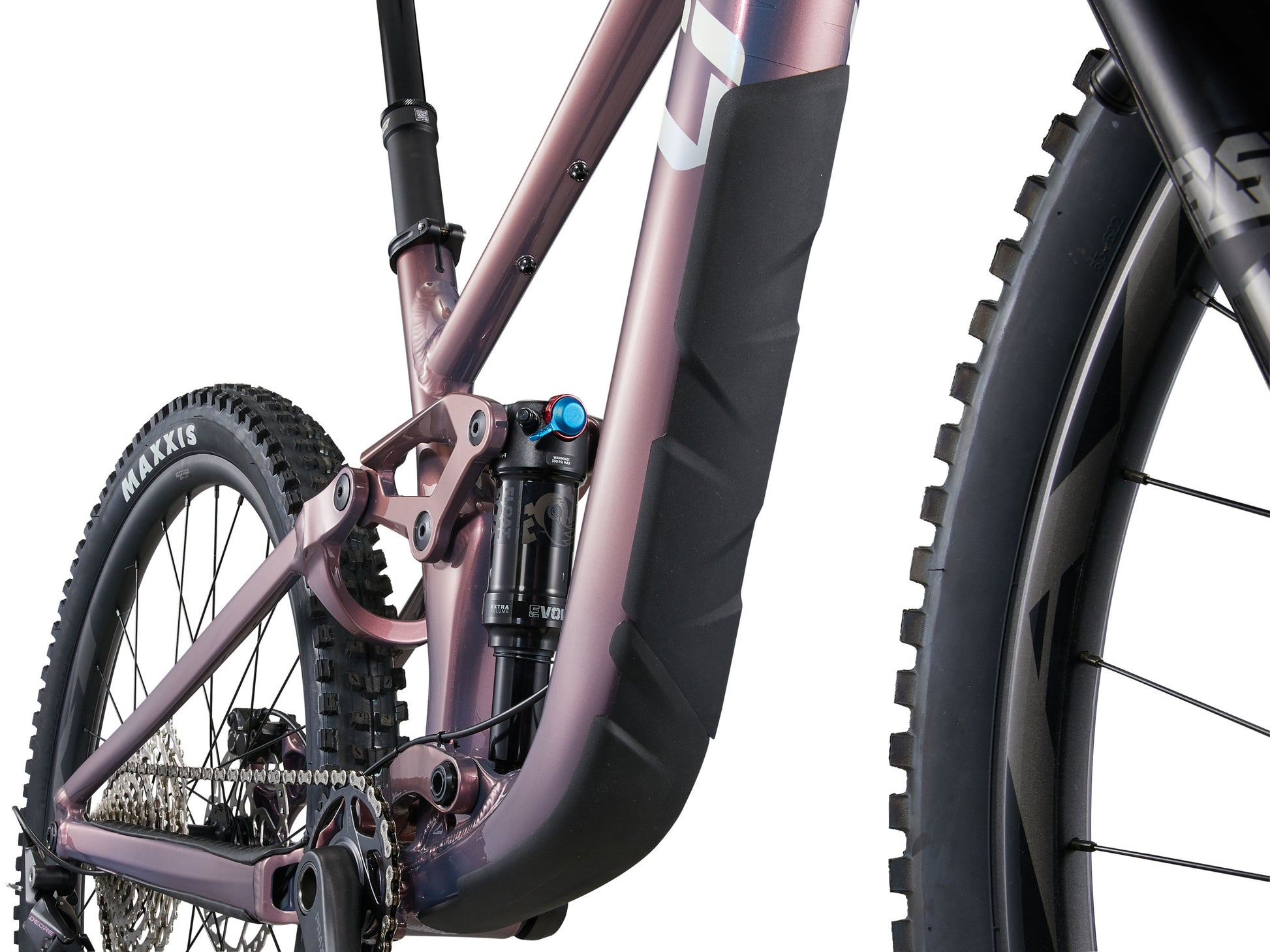

Constructed with lightweight and durable ALUXX SL-grade aluminum, the frame boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.
Adjustable Frame Geometry

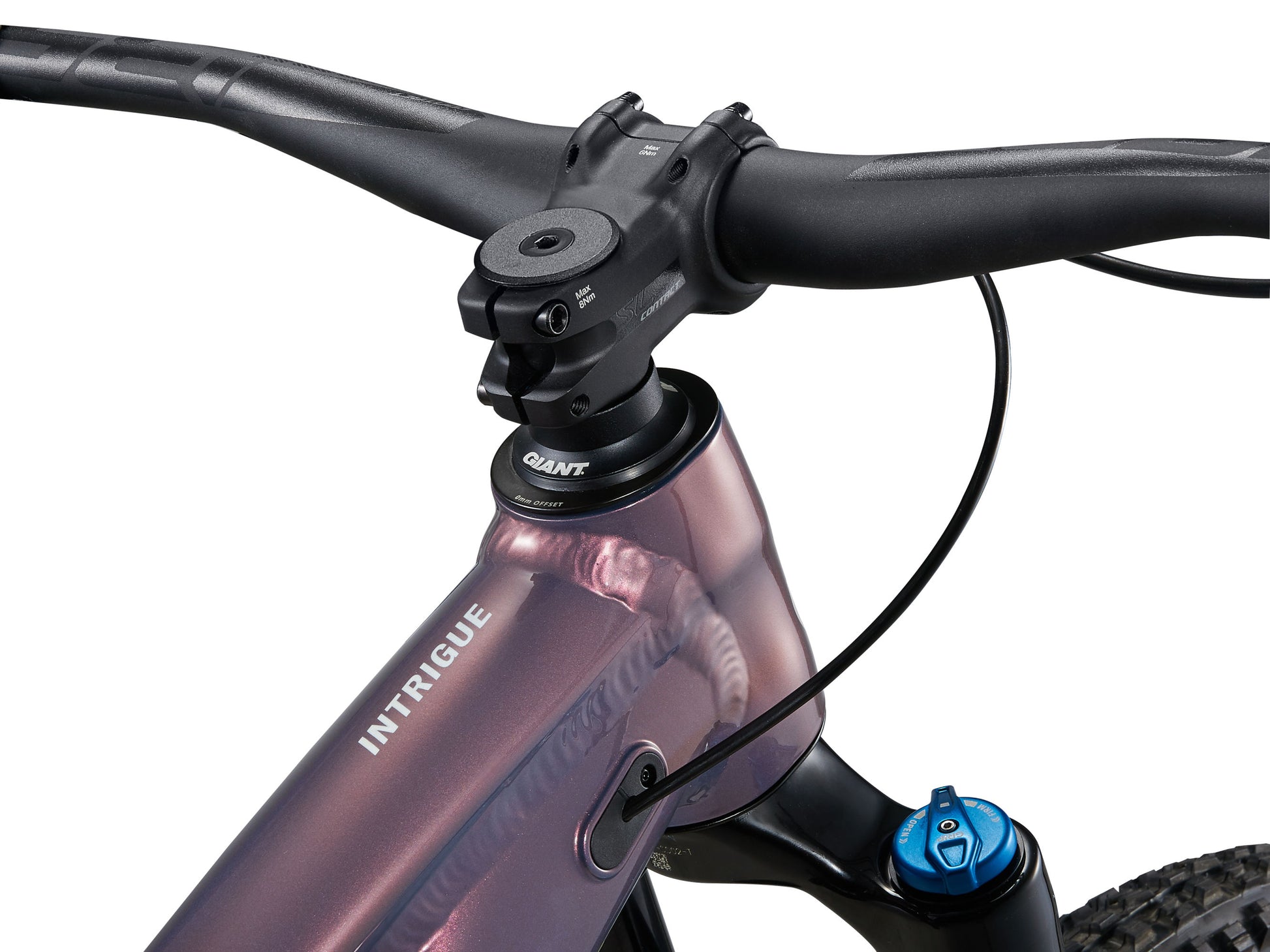

For ultimate adjustability, the Intrigue X features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimize your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for M and L only
Best of Both Wheels
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L
Upper Peninsula Delivery Only
We'll deliver kayaks, bikes, and hard sided stand up paddle boards over $600 for free within 10 miles of our Houghton or Marquette locations. We offer delivery beyond 10 miles for $200. All orders outside of the U.P. will be canceled and refunded as we aren't able to ship them. If you have any questions please give us a call. We'd be happy to work with customers who don't live locally.
Specifications:
|
Sizes |
XS, S, M, L
|
Brake Levers
|
Shimano BL-MT401
|
|
Colors |
Desert Dawn
|

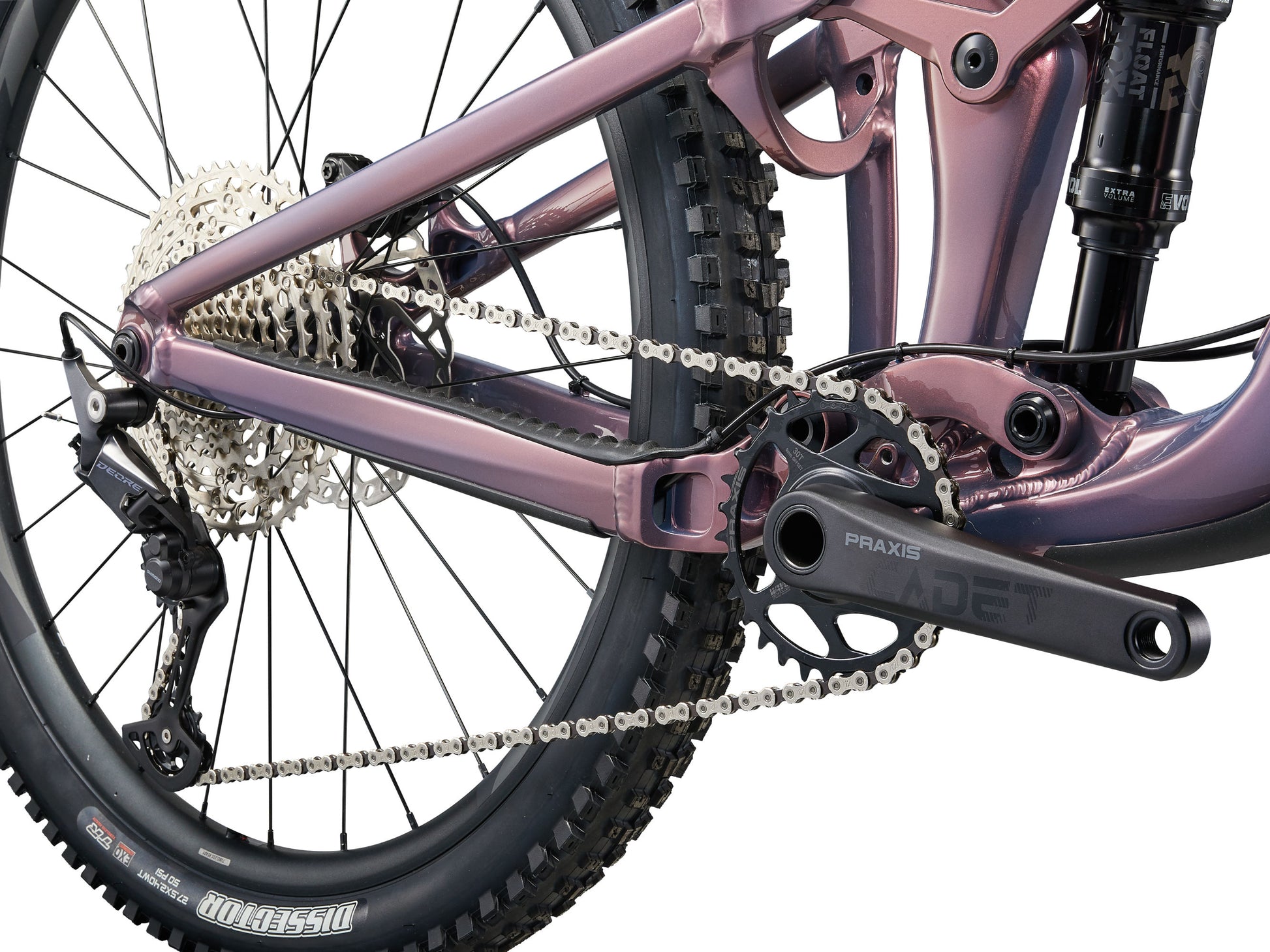

Cassette |
Shimano Deore M6100, 10x51 |
|
Frame |
ALUXX SL-grade aluminum front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage | Chain | KMC X12 |
|

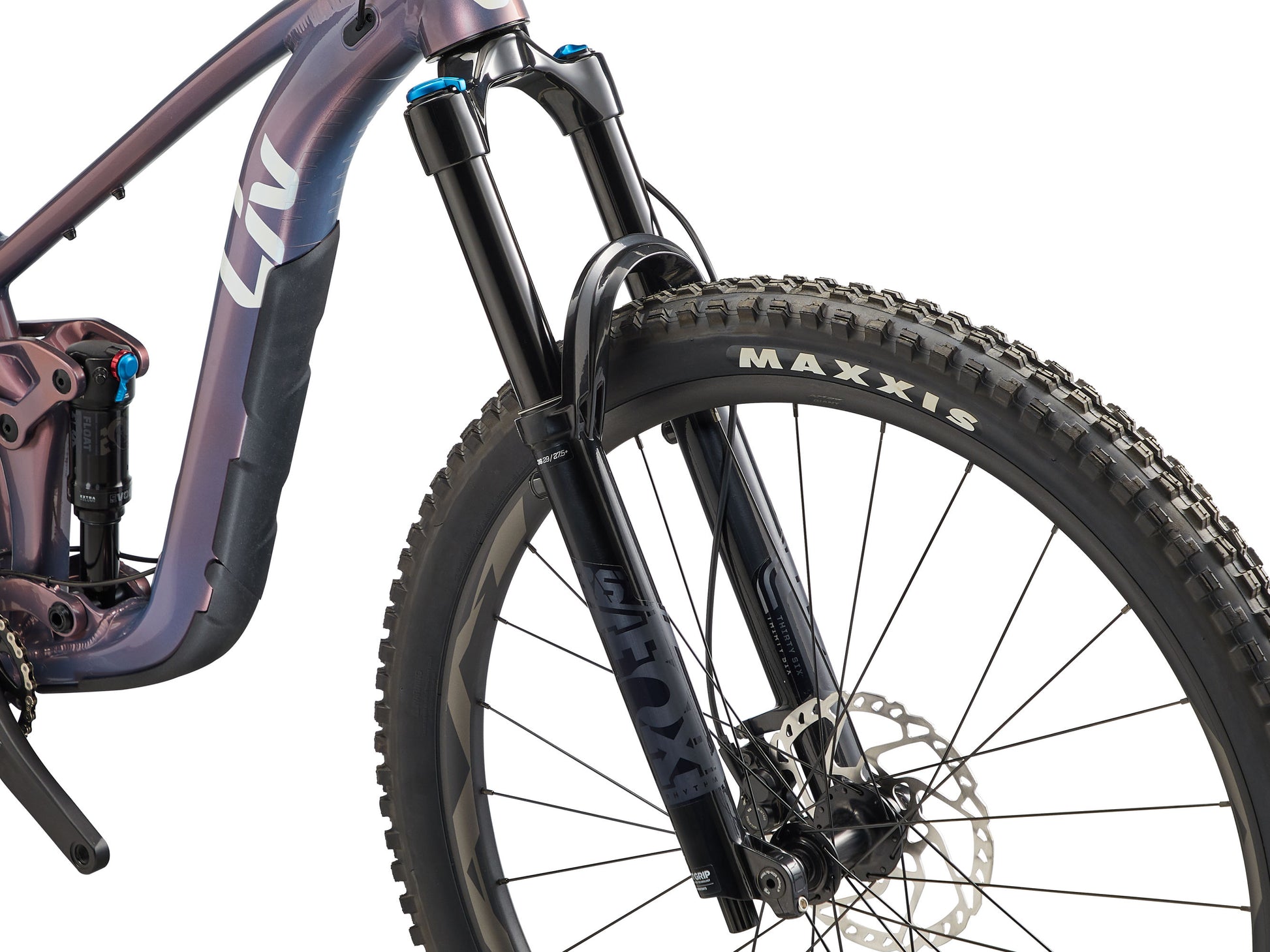

Fork |
Fox 36 Float Rhythm, 150mm, GRIP damper, Boost 15x110 Kabolt X, tapered, 44mm offset |
Crankset |
Praxis Cadet M24 Boost, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm |
|

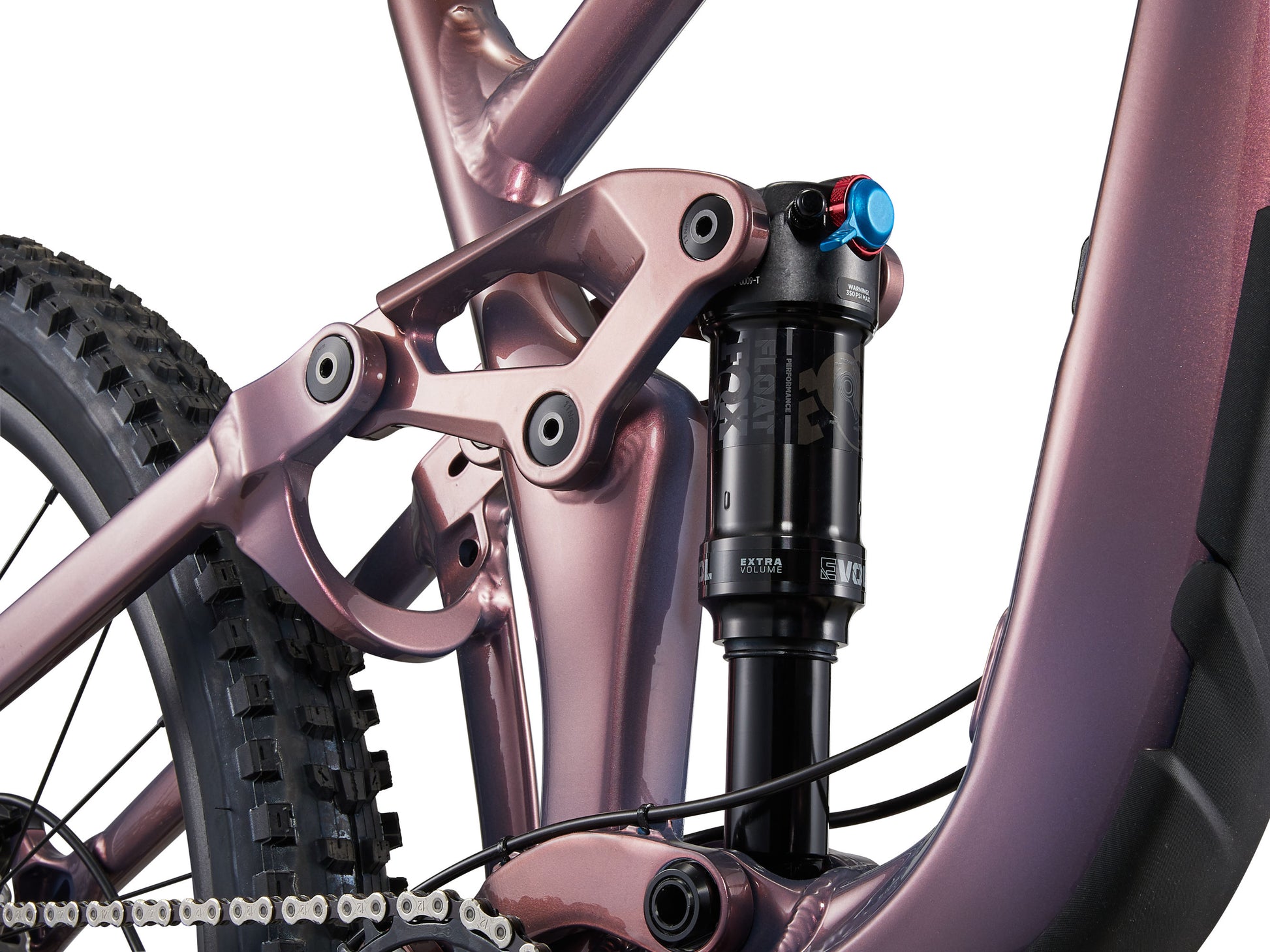

Rear Shock |
Fox Float Performance, 185x52.5, custom tuned for Liv |
Bottom Bracket |
Praxis, press fit |
|

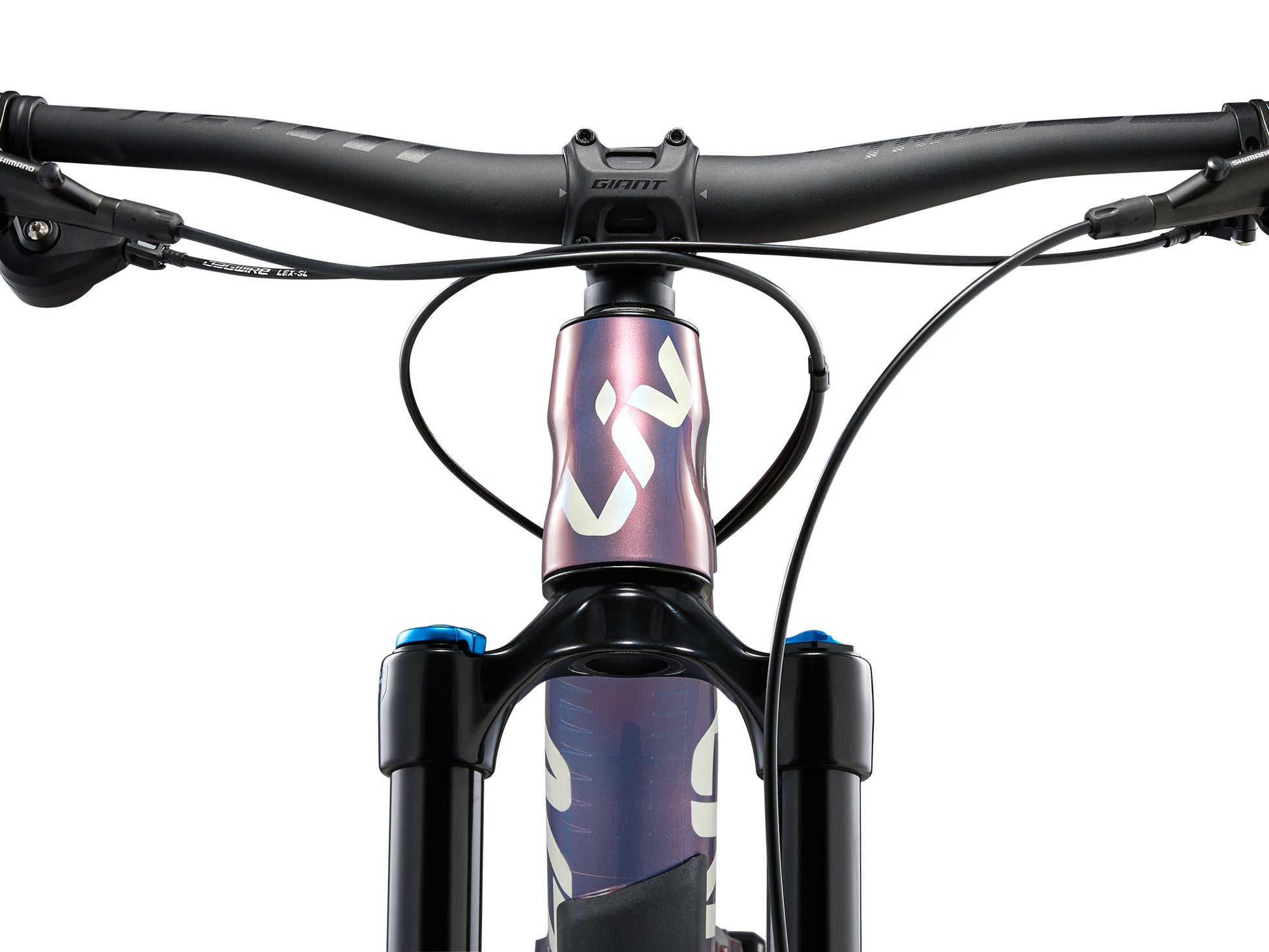

Handlebar |
Giant Contact TR35, 20mm rise, alloy XS: 760mm, S: 760mm, M: 760mm, L: 780mm
|
Rims
|
Giant TRA 2 6061 alloy, sleevejoint, 30mm IW, 40mm OW, 21mm H, Wide Guard technology XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29
|
|
Grips |
Liv Tactal Pro single lock-on
|
Hubs |
[F] Giant MTB alloy, 6-bolt, sealed [R] Giant MTB alloy, 6 bolt, 72t POE, 6-pawl, sealed |
|
Stem |
Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm |
Spokes |
Sapim Race j-bend |
|

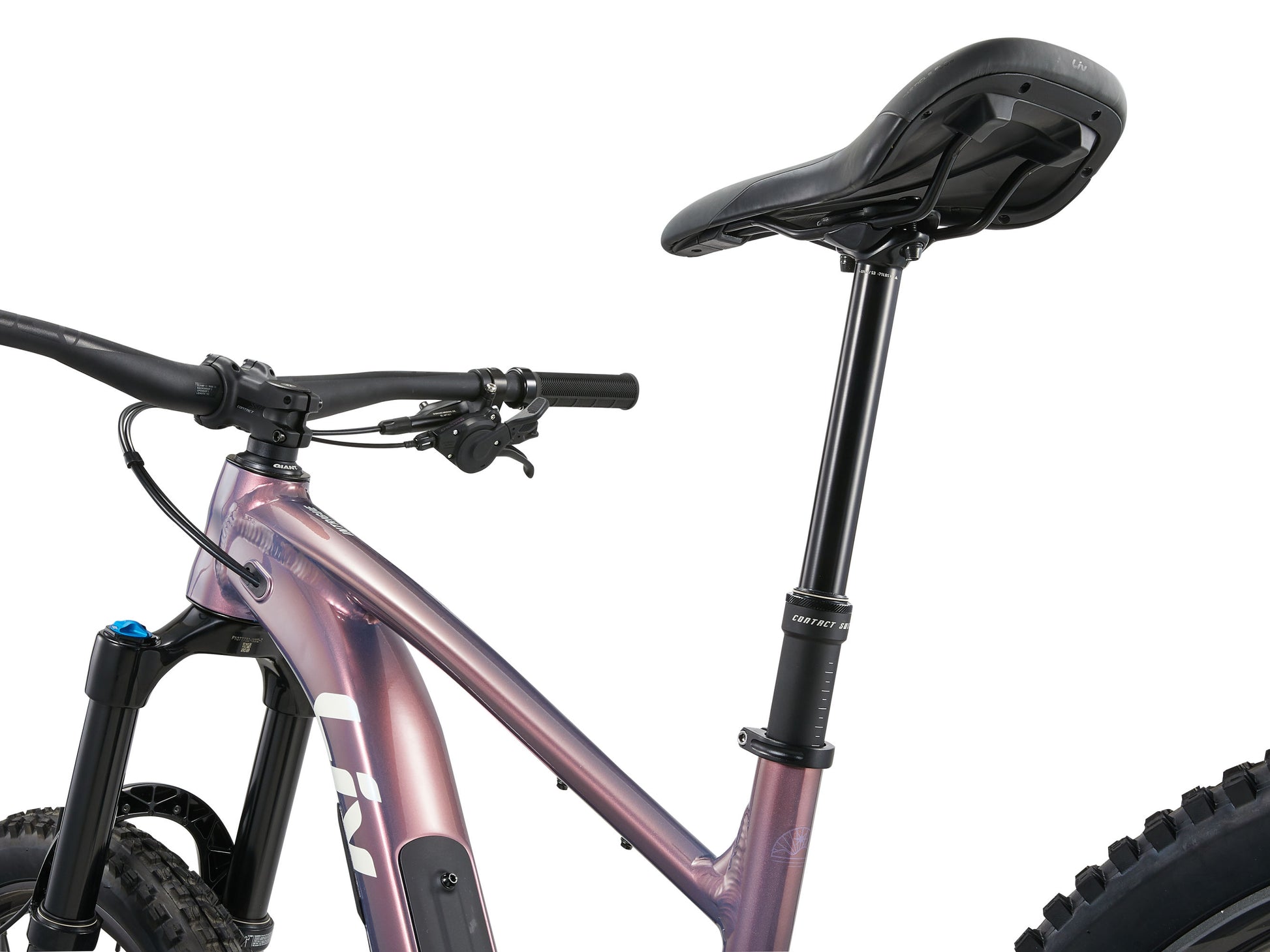

Seatpost |
"Giant Contact Switch AT, adjustable dropper, remote XS/S: 140-170mm travel / 30.9 x 470mm M/L: 170-200mm travel / 30.9 x 530mm"
|
Tires |
[F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless XS/S: [R] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless M/L: [R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
|
Saddle |
Liv Sylvia |
Extras |
tubeless prepared, 2.5" max tire size, 34t max chainring size, integrated down tube storage bag |
|
Shifters |
Shimano Deore, 1x12 |
Pedals |
Sold Seperately
|
|
Rear Derailleur |
Shimano Deore, Shadow + |
Weight |
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
|
Brakes |
Shimano BR-MT420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
|
|
*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
