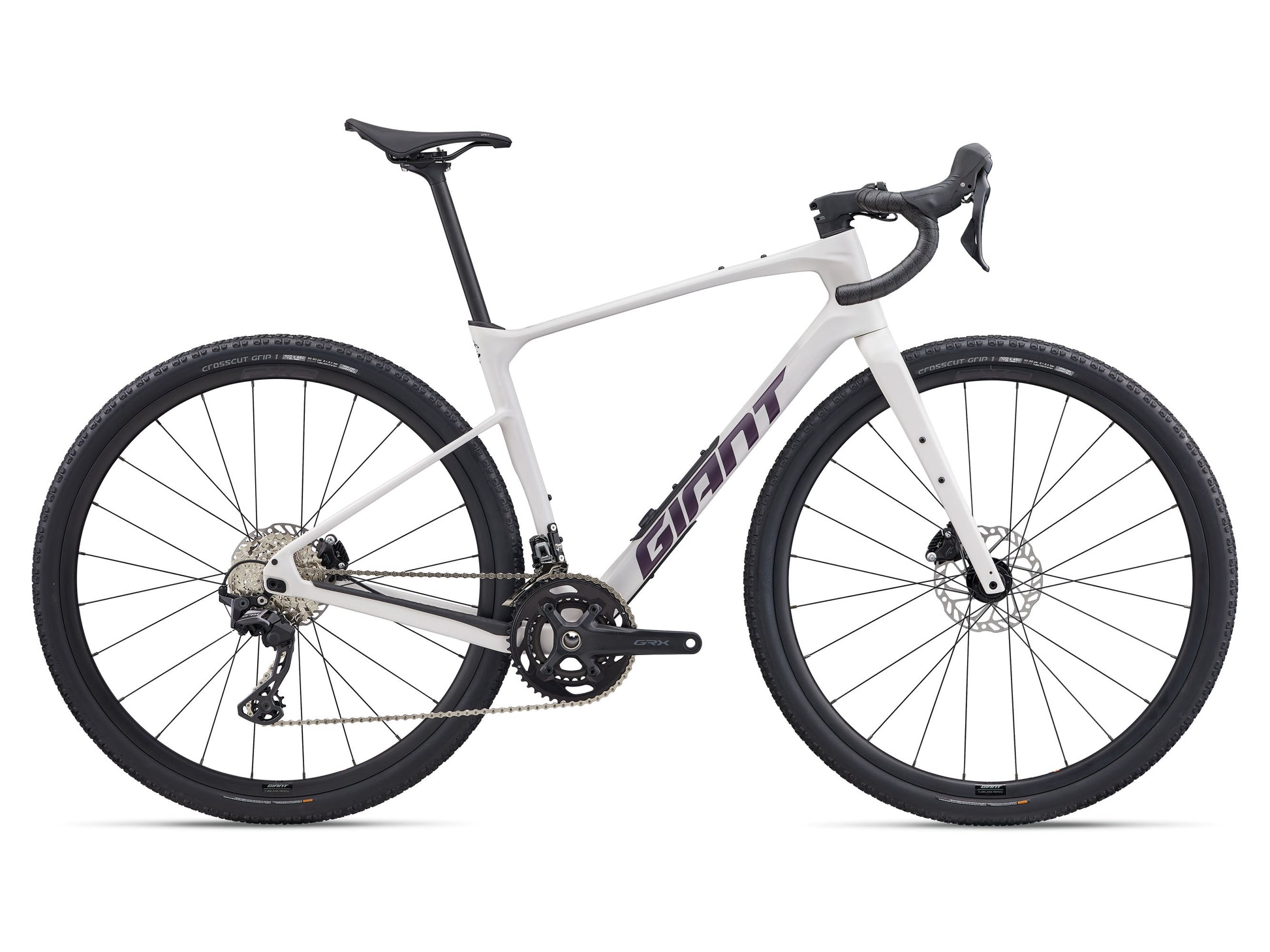

GIANT Revolt Advanced 2
GIANT Revolt Advanced 2
Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing. Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing. A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Upper Peninsula Delivery Only
We'll deliver kayaks, bikes, and hard sided stand up paddle boards over $600 for free within 10 miles of our Houghton or Marquette locations. We offer delivery beyond 10 miles for $200. All orders outside of the U.P. will be canceled and refunded as we aren't able to ship them. If you have any questions please give us a call. We'd be happy to work with customers who don't live locally.
Specifications:
|
Sizes |
XS, S, M, M/L, L, XL
|
Cassette
|
Shimano CS-HG710, 12-speed, 11x36
|
|
Colors |
Lavender Blush, Carbon
|
Chain |
KMC X12L-1 |
|
Frame |
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage | Crankset | Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
|
Fork |
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
Bottom Bracket |
Shimano, press fit |
|
Handlebar |
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
|
Rims
|
Giant P-X2 , alloy
|
|
Grips |
Stratus Lite 3.0
|
Hubs |
Giant alloy, 12mm thru-axle |
|
Stem |
Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
Spokes |
Sapim |
|
Seatpost |
Giant D-Fuse, composite, 14mm offset
|
Tires |
Giant Crosscut Grip, 700x45c, tubeless |
|
Saddle |
Giant Grit |
Extras |
tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag |
|
Shifters |
Shimano GRX RX-610, 2x12 |
Max Tire Clearance |
53mm |
|
Front Derailleur |
Shimano GRX RX-820 |
Weight |
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
|
Rear Derailleur |
Shimano GRX RX-820 |
|
|
|
Brakes |
Shimano BR-RX410hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
|
|
|
Brake Levers |
Shimano GRX RX-610 hydraulic |
|
|
*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
Product features
Product features
Updated suspension: A new Maestro rear suspension
system gives trail riders 140mm of rear travel. The trunnion mount shock
and Advanced Forged Composite rocker arm combine for a longer stroke
that has a smooth, active feel, plus greater stiffness in the chassis
for precision control. The rear suspension is paired with a 150mm travel
fork, providing superior confidence and control on technical
singletrack.
Adjustable trail geometry: A three-position Maestro
flip chip lets riders dial in frame geometry for their riding style and
terrain. The high setting adds more ground clearance, a good option for
tight, technical terrain. In the low setting, the head tube gets slacker
and the bottom bracket drops, ideal for confident handling at higher
speeds. The middle position is neutral. In addition, a new headset flip
chip adjusts reach so that riders can easily achieve their preferred
positioning.
Rear wheel options: All models come with 29-inch front
and rear wheels, but the flip chip lets you opt for a mixed wheel setup
including a 27.5 rear. The stock 29-inch rear wheel optimizes stability
and roll-over capabilities, while a 27.5 delivers a more agile, snappier
feel and more saddle-to-tire clearance in the rear. Some riders favor
this “mullet” setup for riding steep, technical terrain.
Materials
Materials
ALUXX SL-Grade Aluminum front and rear triangles
