Troxus Lynx Plus

$1,999.00 USD

~~$2,199.00 USD~~ $1,999.00 USD

Sale Sold out

Shipping calculated at checkout.

Ready for new roads ahead

Better than ever, the updated Lynx Plus fat tire electric bike, a mini cargo hauler, is ready to roam and explore. Highly maneuverable and nimble, it’s perfect for city dwellers, but with 20” fat tires, it can escape the urban jungle to explore nature too. With its redesigned semi-integrated rear rack, with MIK compatibility, it can carry up to 100 lbs. on the rear rack and 400 lbs. total, making the Lynx Plus ultra-capable.

Max Speed	Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Range	Up To 90 Miles Per Charge
Weight Limit	Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs
Net Weight	77.2 lbs

E-Systems

Motor	Ananda 48V/750W Hub-Drive Motor, 86Nm Max. Torque
Battery	UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells

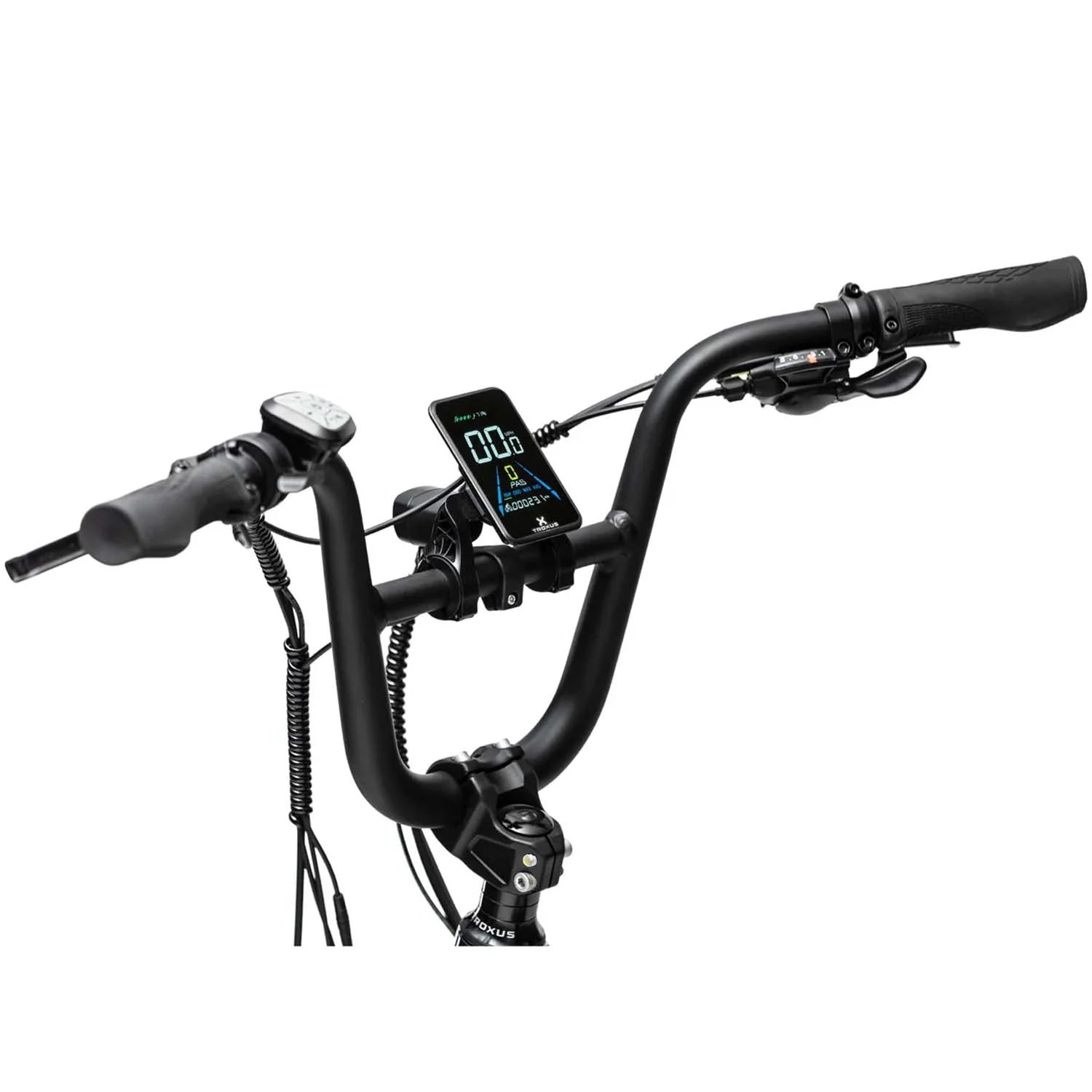

Display	Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging
Sensor	Switchable Torque And Cadence Sensor Modes
Pedal Assist	0~5 Level Pedal Assist
Charger	3A / 100-240V Input / 54.6V Output

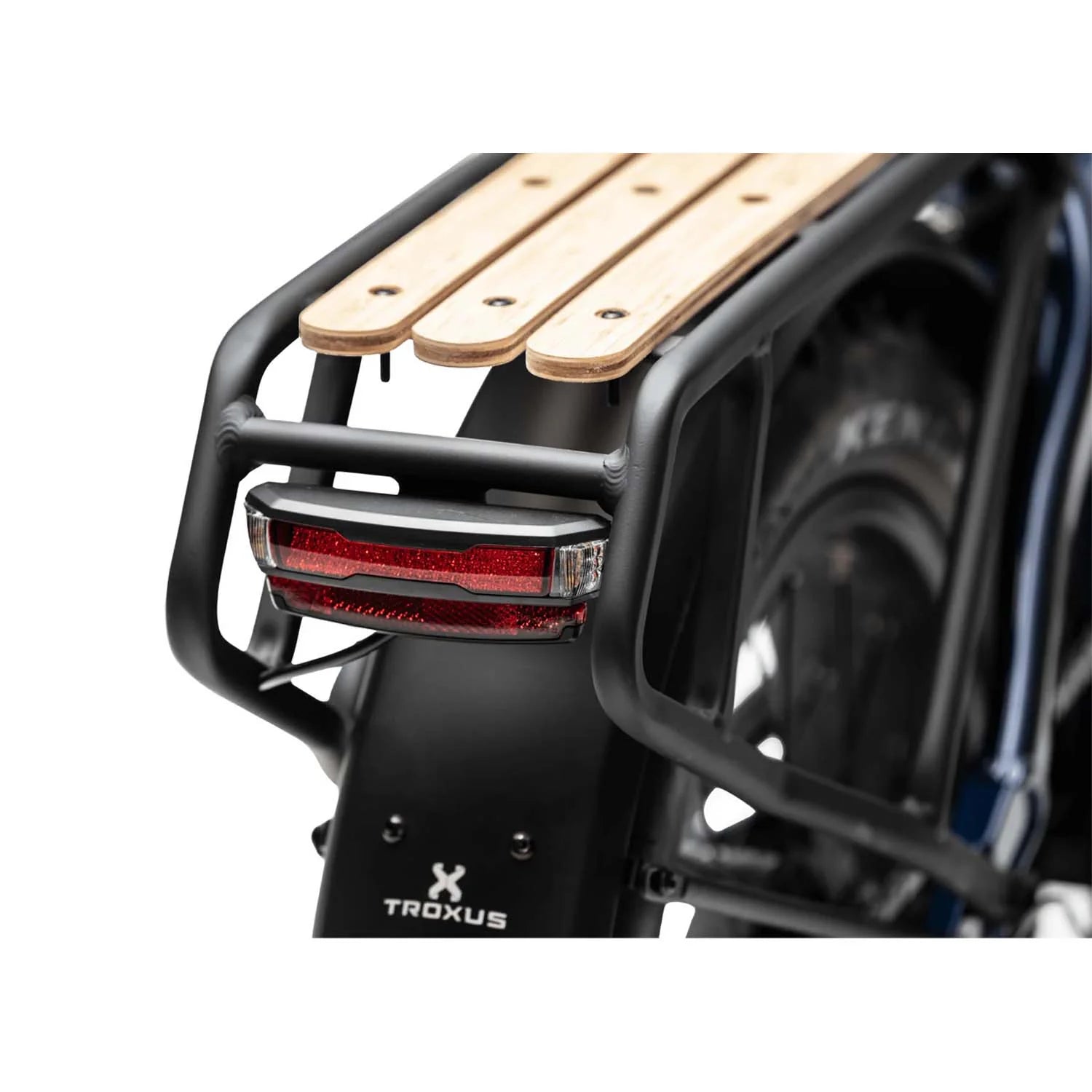

Lights	Front Light, Rear Light w/ Turn & Hazard Signals
Controller	48Vx22A/12V

Components

Frame	6061-T6 Aluminum Step-Thru Frame
Fork	Front Suspension Fork, 80mm Travel
Chain	KMC® 1/2"x3/32"
Crankset	Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 165mm
Rear Derailleur	Shimano® RD-M310-L, Altus, 8-Speed
Cassette	Shimano® 8-Speed, 12-32T
Shifter	Shimano® 8-Speed
Bottom Bracket	Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Tires	KENDA® 20"x4.0", w/ Anti-Puncture K-Shield
Front Hub	Alloy, 36H, 110mm, 3/8" Axle
Rear Hub	Bafang® 48V 750W/ 28 MPH. 86Nm
Rims	Alloy Double Wall, 20"x4.0" w/ Eyelets
Spokes	Stainless 13G. Front / 12G. Rear
Brakes	Tektro® Hydraulic, w/ Brake Sensors
Rotors	Troxus Comfort w/ Back Handle
Saddle	Troxus Comfort w/ Back Handle
Seat Post	Alloy, 30.9x400mm, Adjustable
Seat Post Clamp	Alloy, 35mm w/ Quick Release
Stem	Alloy, BMX style, Top-Load, 30 Deg. Angle, 50mm Extension
Handlebar	Alloy 6061-T6, 31.8mmx 680mm Wide, 261mm Rise
Grips	Ergonomic Comfort
Pedals	9/16″ Alloy Platform with Reflectors
Headset	Threadless, Locking Internal 1-1/8"
Rear Shocks	N/A
Rack	Semi-Integrated Alloy Rear Model/ MIK-Compatible Rear Rack
Fender	Alloy, 20"x4.0" w/ Alloy Hardware
Kickstand	Adjustable Side Kickstand

Color Cadet Blue Charcoal Chalk
